Five-Axis Servo Wire Cut Machine CB – Series

Products Details

Five-Axis Servo Wire Cut Machine CB – Series

Equipped with patented two-stage automatic tension control, advanced heat pump cooling, and precision five-axis CNC with servo motors, linear guide rails, and ball screws, this machine delivers unmatched stability and cutting accuracy

Download Brochure
Machine Specs

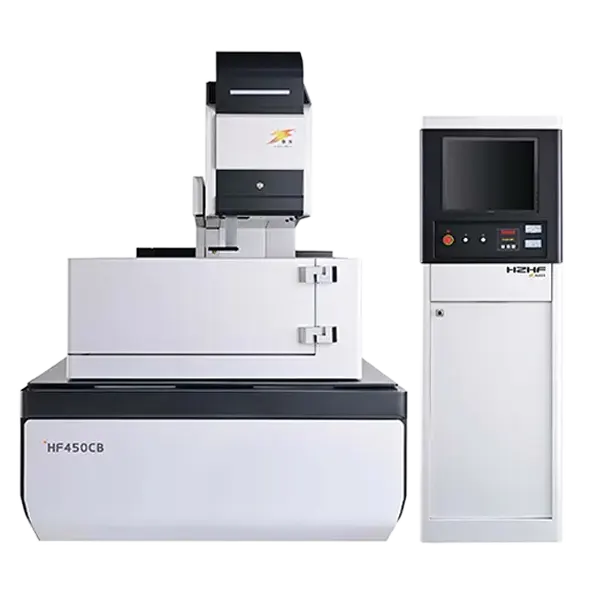

HF450CB
FEATURES HF450CB
Worktable Size  950×640 mm
Worktable Stroke  450×320 mm
Maximum Cutting Thickness  350 mm
Max Taper Angle  ±12°
Maximum Load Weight  400 kg
Net Weight  2100 kg
Machine Size  1760×1410×2030 mm
Cutting Accuracy  up to ±0.005
Roughness  Up to Ra 0.6μm
Maximum Cutting Speed  Up to 220 mm²/min
Wire Diameter  Standard 0.18 mm
Input Voltage  Three-Phase AC 380V 50Hz
Input Power  3.5 kW
Book a Visit to Our Experience Centre

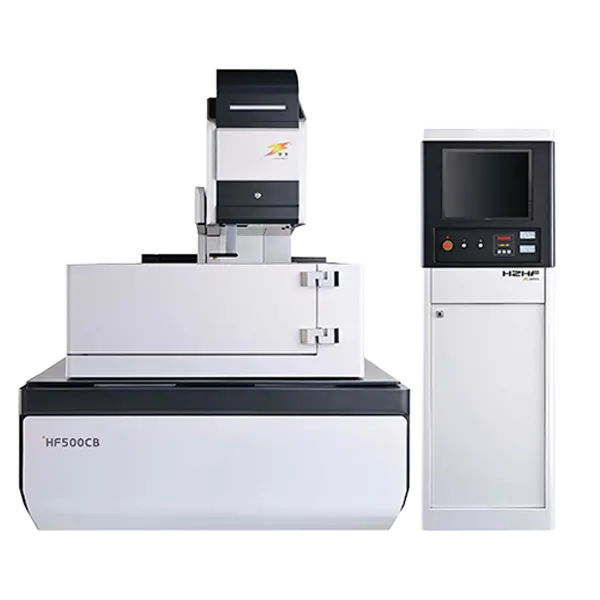

HF500CB
FEATURES HF500CB
Worktable Size 950×660 mm
Worktable Stroke 500×400 mm
Maximum Cutting Thickness 350 mm
Max Taper Angle ±12°
Maximum Load Weight 600 kg
Net Weight 2500 kg
Machine Size 1870×1480×2030 mm
Cutting Accuracy up to ±0.005
Roughness Up to Ra 0.6μm
Maximum Cutting Speed Up to 220 mm²/min
Wire Diameter Standard 0.18 mm
Input Voltage Three-Phase AC 380V 50Hz
Input Power 3.5 kW
Book a Visit to Our Experience Centre
HF630CB
FEATURES HF630CB
Worktable Size 1100×710 MM
XY Axis travel 630×500 MM
Maximum Cutting Thickness 350 mm
Max Taper Angle ±12°
Maximum Load Weight 800 kg
Net Weight 2700 kg
Machine Size 1980x1650x2030 mm
Cutting Accuracy up to ±0.005
Roughness Up to Ra 0.6μm
Maximum Cutting Speed Up to 220 mm²/min
Wire Diameter Standard 0.18 mm
Input Voltage Three-Phase AC 380V 50Hz
Input Power 3.5 kW
Book a Visit to Our Experience Centre
